Models: HSP 6 RUEDA C PGI, anthracite/matallic tile / Tiled pellet stove HSP 6 Rueda C PGI, anthracite, ceramic white / Tiled pellet stove HSP 6 Rueda C PGI, anthracite, ceramic red patina
ico-play
Peletová kamna HSP 6 Rueda RLU C od HAAS+SOHN
premium

Pellet stoves

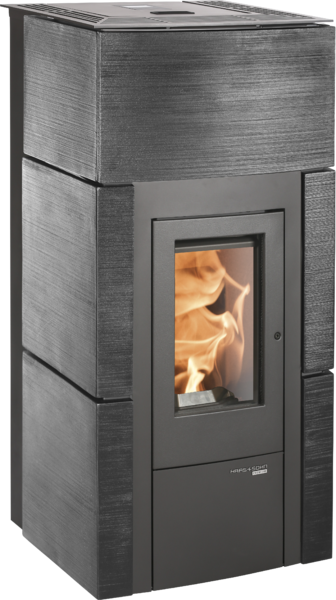

Pellet stove HSP 6 RUEDA C PGI

Highlights

Asset 10
Friendly for allergy suffer
thanks to the heat exchanger
Asset 18
External combustion air supply
ideal for low-energy houses
Asset 6
Large glass area
for a cozy atmosphere
Asset 14
Separate air intake
does not require air from the room for heating purposes
Asset 3
WLAN
optional feature Wlan Local & Global
Search dealers Instalační firma
Follow us
ico-fb ico-insta ico-pint ico-in

Parameters

Model
Color
Ordering Number
Capacity
Dimensions
Weight
Smoke-flue diameter
Pipe socket diameter
Efficiency
Heating capacity
Fuel
Energy efficiency class
‹
anthracite metalic
0546532750000
2.4 - 8.3 kW
1201 / 560 / 513 mm
163 kg
80 mm
rear
90 %
149 m3
Pellets
A+
anthracite white
0546532760000
2.4 - 8.3 kW
1201 / 560 / 513 mm
163 kg
80 mm
rear
90 %
149 m3
Pellets
A+
anthracite red patina
0546532770000
2.4 - 8.3 kW
1201 / 560 / 513 mm
163 kg
80 mm
rear
90 %
149 m3
Pellets
A+
›
* The offer is informative only and is not binding

Related products (if not included as standard)

Model
Name
Ordering Number
Dimensions
Weight
‹
Room temperature sensor WRF04 for Pellet Stoves incl.8m cable
0532007010000
0 kg
Flexi houses for connection of external air supply 100/3 m
1101501000020
4 kg
Flexi houses for connection of external air supply 125/3 m
1101501000021
0 kg
Flexi houses for connection of external air supply 80/3 m
1101501000022
0 kg
Flexi houses for connection of external air supply 100/3 m black lacquer
1101501000023
0 kg
Flexi houses for connection of external air supply 125/3 m black lacquer
1101501000024
0 kg
Flexi houses for connection of external air supply 80/3 m black lacquer
1101501000025
0 kg
›
* The offer is informative only and is not binding

Downloads

ico-file-pdf
MONTÁŽNÍ NÁVOD
1,41 MB
ico-file-pdf
ENERGETIC LABEL
200,48 kB
ico-file-pdf
PRODUCT FICHE
91,01 kB
ico-file-pdf
DECLARATION OF CONFORMITY
149,38 kB
ico-file-pdf
EQUIPMENT SHEET
195,71 kB
ico-file-pdf
DECLARATION OF PERFORMANCE
1,42 MB
ico-file-zip
3D model
9,22 MB
ico-file-pdf
EQUIPMENT SHEET
4,79 MB
