Models: Pellet stove HSP 7 II GRANDE RLU, black / Pellet stove HSP 7 II GRANDE RLU, black / Pellet stove HSP 7 II GRANDE RLU, grey
ico-play
premium

Pellet stoves

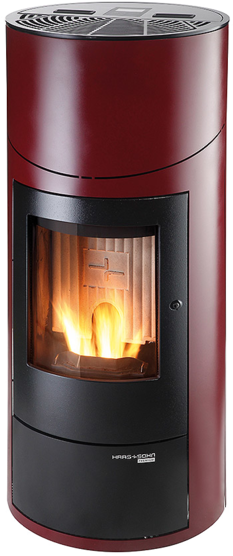

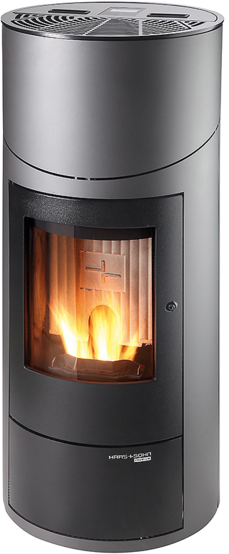

Pellet stove HSP 7 II GRANDE RLU DE LUXE

Highlights

Asset 10
Friendly for allergy suffer
thanks to the heat exchanger
Asset 18
External combustion air supply
ideal for low-energy houses
Asset 17
Extremely quiet operation
almost noiseless
Asset 12
Fully automatic electronic air control
our patented TOP combustion technology
Asset 6
Large glass area
for a cozy atmosphere
Asset 14
Separate air intake
does not require air from the room for heating purposes
Search dealers Instalační firma
Follow us
ico-fb ico-insta ico-pint ico-in

Parameters

Model
Color
Ordering Number
Capacity
Dimensions
Weight
Smoke-flue diameter
Pipe socket diameter
Efficiency
Heating capacity
Fuel
Energy efficiency class
‹
black red
0545108570000
2.4 - 8.2 kW
1173 / 494 / 494 mm
130 kg
80 mm
rear
90 %
148 m3
Pellets
A+
black copper
0545108590000
2.4 - 8.2 kW
1173 / 494 / 494 mm
130 kg
80 mm
rear
90 %
148 m3
Pellets
A+
grey
0545108600000
2.4 - 8.2 kW
1173 / 494 / 494 mm
130 kg
80 mm
rear
90 %
148 m3
Pellets
A+
›
* The offer is informative only and is not binding

Related products (not included in the standard delivery)

Model
Name
Ordering Number
Dimensions
Weight
‹
Room temperature sensor WRF04 for Pellet Stoves incl.8m cable
0532007010000
0 kg
Flexi houses for connection of external air supply 100/3 m
1101501000020
0 kg
Flexi houses for connection of external air supply 125/3 m
1101501000021
0 kg
Flexi houses for connection of external air supply 80/3 m
1101501000022
0 kg
Flexi houses for connection of external air supply 100/3 m black lacquer
1101501000023
0 kg
Flexi houses for connection of external air supply 125/3 m black lacquer
1101501000024
0 kg
Flexi houses for connection of external air supply 80/3 m black lacquer
1101501000025
0 kg
›
* The offer is informative only and is not binding

Downloads

ico-file-pdf
ENERGETIC LABEL
195,07 kB
ico-file-pdf
PRODUCT FICHE
84,57 kB
ico-file-pdf
ANNEX NO. 1 TO THE EQUIPMENT SHEET
208,67 kB
ico-file-pdf
DECLARATION OF PERFORMANCE
844,01 kB
ico-file-zip
3D model
29,39 MB
?
